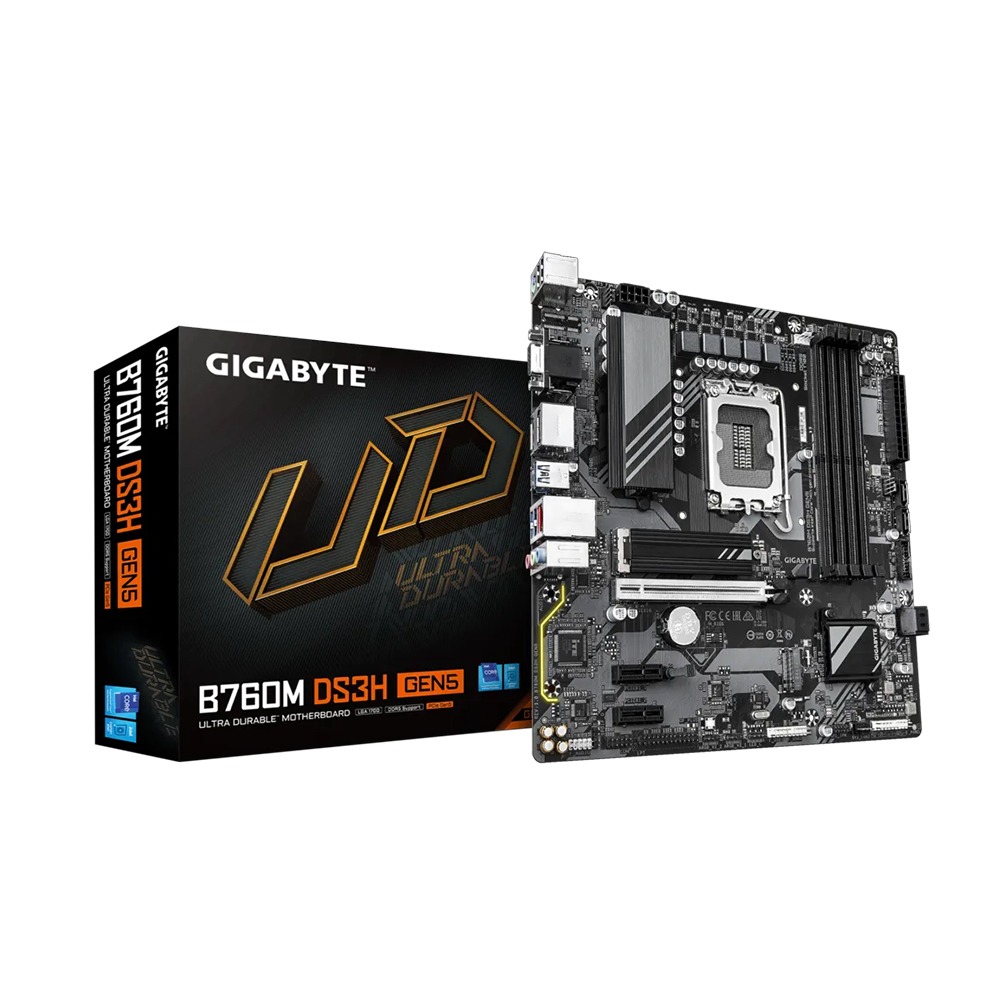

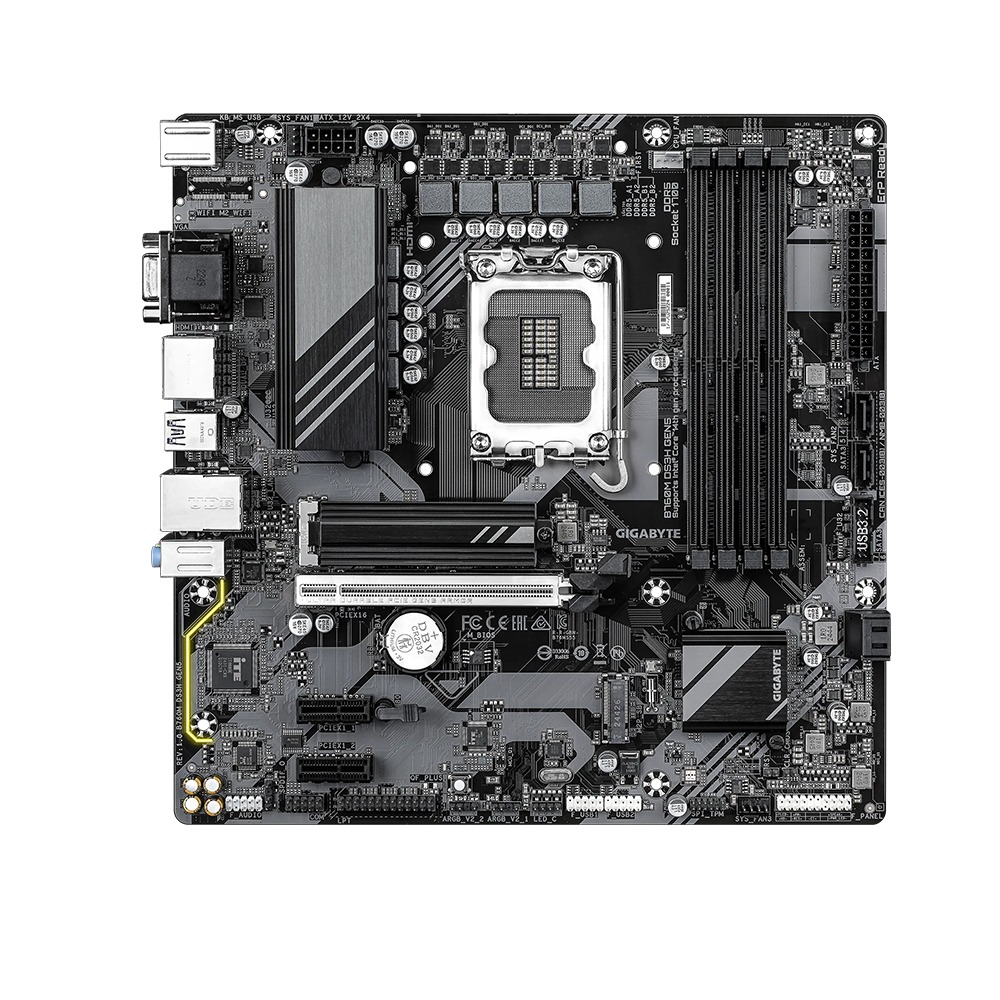

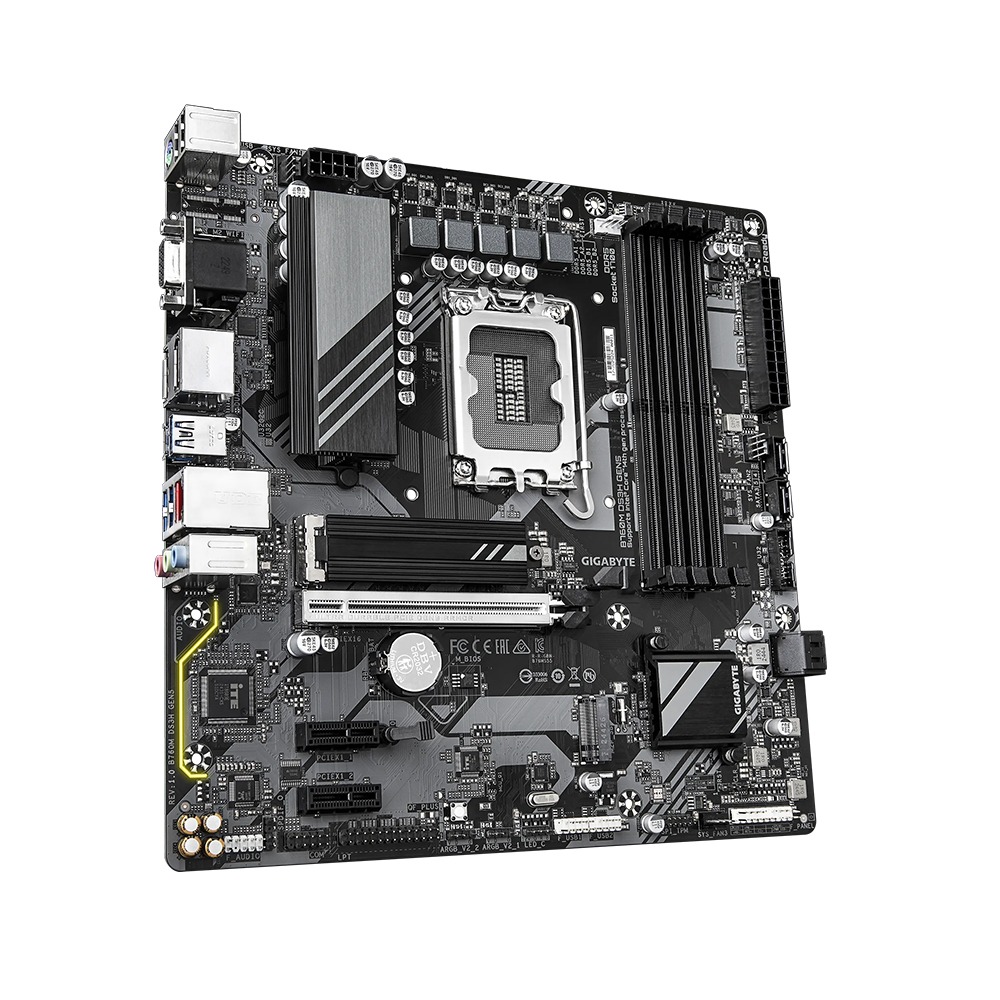

Mainboard Gigabyte B760M DS3H GEN5 DDR5

Mã SP:

Đánh giá: Lượt xem: 19

Mô tả sản phẩm:

- Socket: LGA1700 hỗ trợ CPU intel 14th, 13th, and 12th Generation
- Kích thước: Micro ATX
- Khe cắm RAM: 4 khe (Tối đa 256 GB)
- Khe cắm mở rộng: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16, 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
- Khe cắm ổ cứng: 1 x M.2 connector, 1 x M.2 connector, 4 x SATA 6Gb/s connectors

Bảo hành:	36 tháng
Kho hàng:	Còn hàng

4.159.000 VNĐ 4.159.000 VNĐ

Đặc điểm nổi bật

Đọc thêm

Đánh giá & Nhận xét

0 đánh giá về Mainboard Gigabyte B760M DS3H GEN5 DDR5

Mời bạn gửi đánh giá về sản phẩm


Đánh giá:
Tên bạn
Email *
	Gửi đánh giá

Quang Đức

Tôi đã mua hàng , Nhân viên rất nhiệt tình, phong cách phục vụ chuyên nghiệp. Một địa chỉ tin cậy để khách hàng đặt niềm tin.

Xem thêm các đánh giá khác

Hỏi đáp về Mainboard Gigabyte B760M DS3H GEN5 DDR5

Thông số kỹ thuật

Sản phẩm	Bo mạch chủ
Tên Hãng	Gigabyte
CPU hỗ trợ	Intel
Chipset	B760
RAM hỗ trợ	14th and 13th Generation Intel® Core™ i9/i7 Processors: Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors: Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture
Khe cắm mở rộng	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Ổ cứng hỗ trợ	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

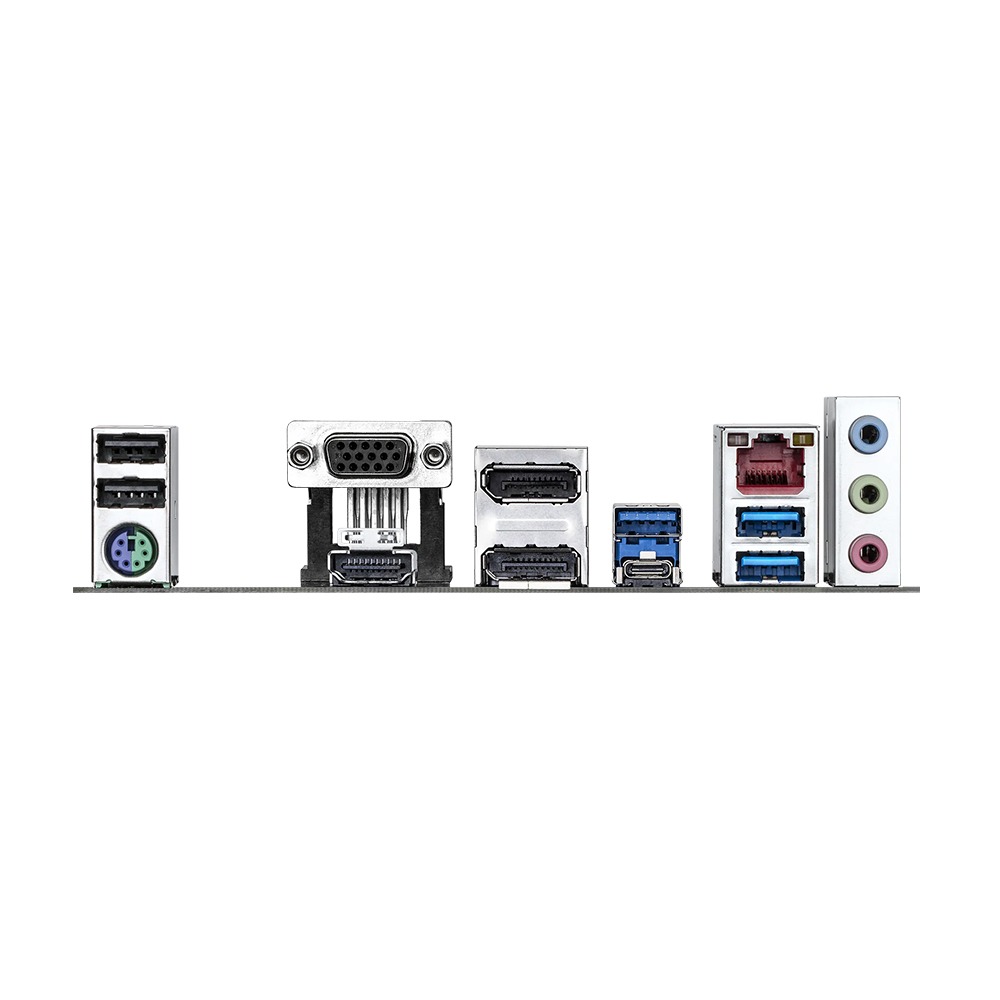

Cổng kết nối (Back Panel)	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port (Note) 1 x HDMI port (Note) 2 x DisplayPorts (Note) 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks
LAN / Wireless	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Kích cỡ	Micro ATX Form Factor; 24.4cm x 24.4cm

Thông số kỹ thuật Mainboard Gigabyte B760M DS3H GEN5 DDR5

Sản phẩm	Bo mạch chủ
Tên Hãng	Gigabyte
CPU hỗ trợ	Intel
Chipset	B760
RAM hỗ trợ	14th and 13th Generation Intel® Core™ i9/i7 Processors: Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors: Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture
Khe cắm mở rộng	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Ổ cứng hỗ trợ	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Cổng kết nối (Back Panel)	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port (Note) 1 x HDMI port (Note) 2 x DisplayPorts (Note) 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks
LAN / Wireless	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Kích cỡ	Micro ATX Form Factor; 24.4cm x 24.4cm
