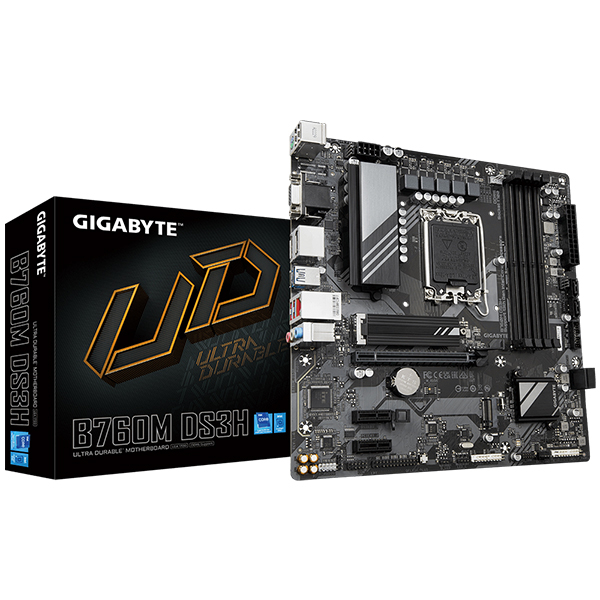

Mainboard Gigabyte B760M DS3H (Intel B760/ Socket 1700/ M-ATX/ 4 khe ram/ DDR5/ 2.5 Gigabit LAN)

Mã SP: MAIN353

Đánh giá: Lượt xem: 329

Mô tả sản phẩm:

- Chipset: Intel B760
- Socket: Intel LGA 1700
- Kích thước Main: M-ATX
- Hỗ trợ CPU: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
- Khe cắm RAM: 4 khe ram
- Loại RAM: DDR5

Bảo hành:	36 tháng
Kho hàng:	Còn hàng

Liên hệ

Đặc điểm nổi bật

Đọc thêm

Đánh giá & Nhận xét

0 đánh giá về Mainboard Gigabyte B760M DS3H (Intel B760/ Socket 1700/ M-ATX/ 4 khe ram/ DDR5/ 2.5 Gigabit LAN)

Mời bạn gửi đánh giá về sản phẩm


Đánh giá:
Tên bạn
Email *
	Gửi đánh giá

Quang Đức

Tôi đã mua hàng , Nhân viên rất nhiệt tình, phong cách phục vụ chuyên nghiệp. Một địa chỉ tin cậy để khách hàng đặt niềm tin.

Xem thêm các đánh giá khác

Hỏi đáp về Mainboard Gigabyte B760M DS3H (Intel B760/ Socket 1700/ M-ATX/ 4 khe ram/ DDR5/ 2.5 Gigabit LAN)

Thông số kỹ thuật

Chipset	Intel B760
Socket	Intel LGA 1700
Kích thước Main	M-ATX
Hỗ trợ CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
Khe cắm RAM	4 khe ram
Loại RAM	DDR5
Bus RAM hỗ trợ	14th and 13th Generation Intel® Core™ i9/i7 Processors: Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors: Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architectur
Card đồ họa	Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version.
Kết nối mạng	2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Thông số (Lan/Wireless)
Khe cắm trong	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
Khe cắm mở rộng	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Cổng giao tiếp ngoài	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x DisplayPorts 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks
Âm thanh	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Phụ kiện kèm theo	Sách, đĩa, cáp SATA, ...

Thông số kỹ thuật Mainboard Gigabyte B760M DS3H (Intel B760/ Socket 1700/ M-ATX/ 4 khe ram/ DDR5/ 2.5 Gigabit LAN)

Chipset	Intel B760
Socket	Intel LGA 1700
Kích thước Main	M-ATX
Hỗ trợ CPU	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
Khe cắm RAM	4 khe ram
Loại RAM	DDR5
Bus RAM hỗ trợ	14th and 13th Generation Intel® Core™ i9/i7 Processors: Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.)/ 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors: Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architectur
Card đồ họa	Integrated Graphics Processor-Intel® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Support for HDMI 2.1 version and HDCP 2.3. Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version and HDCP 2.3 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version.
Kết nối mạng	2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Thông số (Lan/Wireless)
Khe cắm trong	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
Khe cắm mở rộng	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Cổng giao tiếp ngoài	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x DisplayPorts 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks
Âm thanh	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Phụ kiện kèm theo	Sách, đĩa, cáp SATA, ...
