Sản phẩm
|
Bo mạch chủ
|
|
Tên Hãng
|
Gigabyte
|
|
Model
|

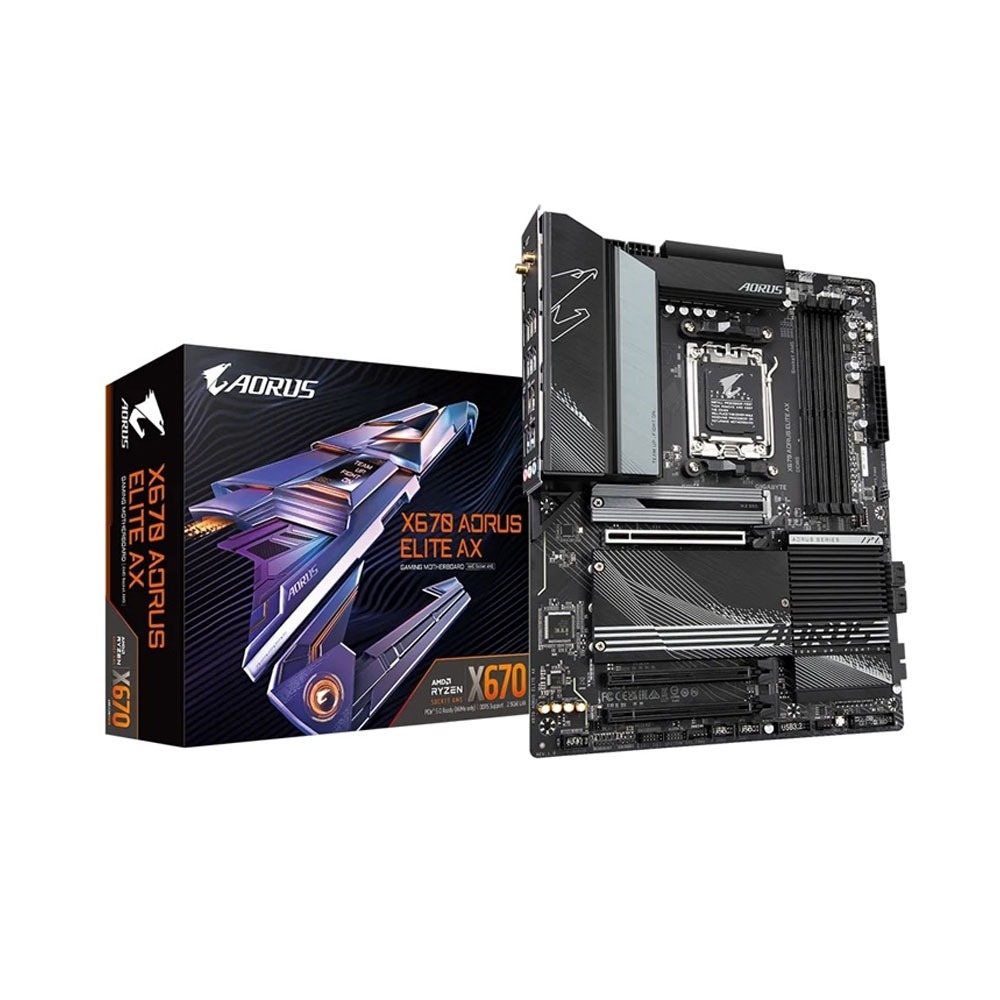

X670 AORUS ELITE AX
|
|
CPU hỗ trợ
|
AMD
|
|
Chipset
|
AMD X670
|
|
RAM hỗ trợ
|
4 x DIMM, Max. 128GB Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
|
|
Khe cắm mở rộng
|
CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
|
|
Ổ cứng hỗ trợ
|
CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0(Note) x4/x2 SSD support) (M2A_CPU)
(Note) Actual support may vary by CPU.
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
- 4 x SATA 6Gb/s connectors
|
|
USB
|
CPU:
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 2 x USB 3.2 Gen 1 ports on the back panel
CPU + USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset:
- 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
- 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
|
|
Cổng kết nối (Internal)
|
- 1 x 24-pin ATX main power connector
- 2 x 8-pin ATX 12V power connectors
- 1 x CPU fan header
- 1 x water cooling CPU fan header
- 3 x system fan headers
- 1 x CPU cooler LED strip/RGB LED strip header
- 2 x addressable LED strip headers
- 2 x RGB LED strip headers
- 4 x SATA 6Gb/s connectors
- 4 x M.2 Socket 3 connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
- 2 x USB 3.2 Gen 1 headers
- 2 x USB 2.0/1.1 headers
- 1 x THB_U4 add-in card connector
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x power button
- 1 x reset button
- 1 x Clear CMOS button
- 1 x reset jumper
- 1 x Clear CMOS jumper
|
|
Cổng kết nối (Back Panel)
|
- 1 x Q-Flash Plus button
- 2 x SMA antenna connectors (2T2R)
- 1 x HDMI port
- 6 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 2 x USB 3.2 Gen 2 Type-A ports (red)
- 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
- 1 x RJ-45 port
- 3 x audio jacks
|
|
LAN / Wireless
|
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
AMD Wi-Fi 6E RZ616 (MT7922A22M)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.2
|
|
Kích cỡ
|
ATX Form Factor; 30.5cm x 24.4cm
|
