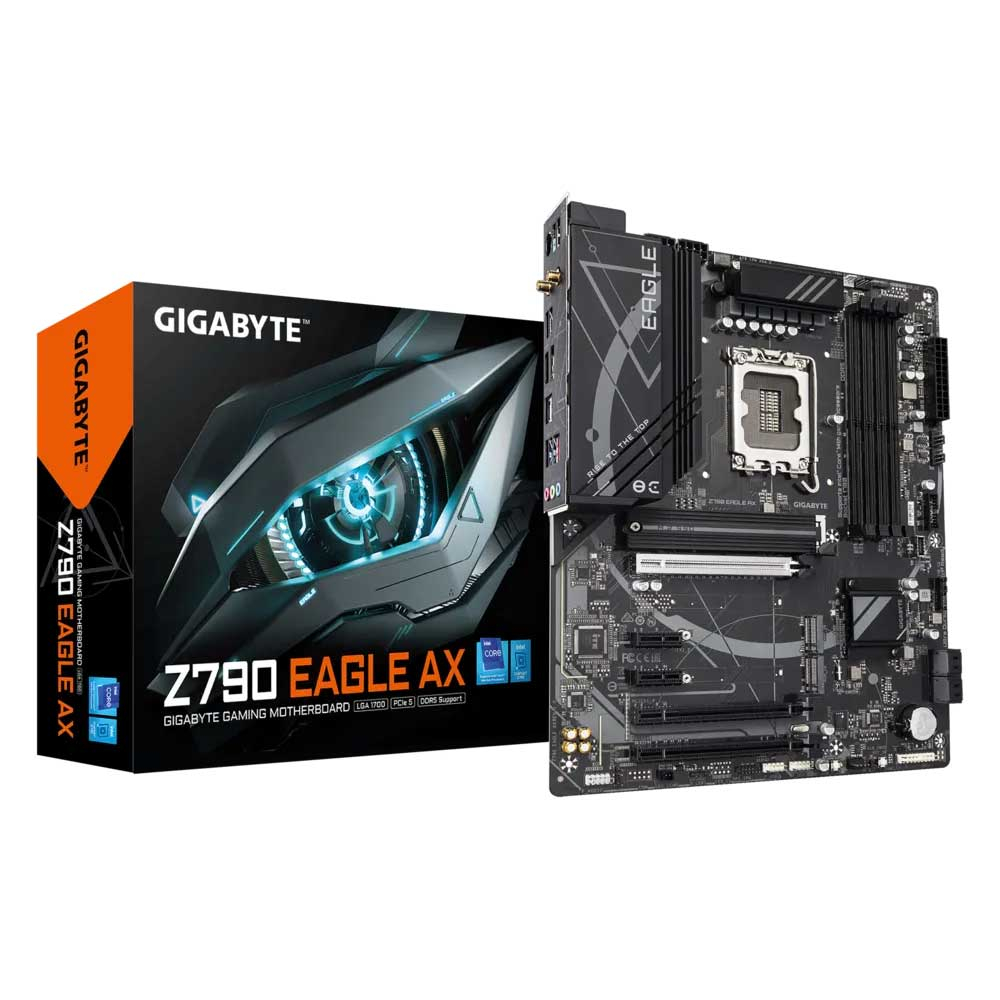

Mainboard GIGABYTE Z790 EAGLE AX DDR5 (Wifi+Bluetooth)

Mã SP: MAIN361

Đánh giá: Lượt xem: 314

Mô tả sản phẩm:

- Socket: LGA1700 hỗ trợ CPU Intel thế hệ thứ 12, 13 và 14
- Kích thước: ATX
- Khe cắm RAM: 4 khe (Tối đa 192 GB)
- Khe cắm mở rộng: 1 x PCI Express x16 slot, 1 x PCI Express x16 slot, 1 x PCI Express x16 slot, 2 x PCI Express x1 slots
- Khe cắm ổ cứng: 3 x M.2 slots, 4 x SATA 6Gb/s connectors

Bảo hành:	36 tháng
Kho hàng:	Còn hàng

Liên hệ

Đặc điểm nổi bật

Đọc thêm

Đánh giá & Nhận xét

0 đánh giá về Mainboard GIGABYTE Z790 EAGLE AX DDR5 (Wifi+Bluetooth)

Mời bạn gửi đánh giá về sản phẩm


Đánh giá:
Tên bạn
Email *
	Gửi đánh giá

Quang Đức

Tôi đã mua hàng , Nhân viên rất nhiệt tình, phong cách phục vụ chuyên nghiệp. Một địa chỉ tin cậy để khách hàng đặt niềm tin.

Xem thêm các đánh giá khác

Hỏi đáp về Mainboard GIGABYTE Z790 EAGLE AX DDR5 (Wifi+Bluetooth)

Thông số kỹ thuật

Sản phẩm	Bo mạch chủ
Tên Hãng	Gigabyte
CPU hỗ trợ	Intel
Chipset	Z790
RAM hỗ trợ	4 x DDR5 DIMM sockets supporting up to 192 GB
Khe cắm mở rộng	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Ổ cứng hỗ trợ	CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Cổng kết nối (Back Panel)	1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (1T1R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks
LAN / Wireless	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek® Wi-Fi 6E RTL8852CE(PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Kích cỡ	ATX Form Factor; 30.5cm x 24.4cm

Thông số kỹ thuật Mainboard GIGABYTE Z790 EAGLE AX DDR5 (Wifi+Bluetooth)

Sản phẩm	Bo mạch chủ
Tên Hãng	Gigabyte
CPU hỗ trợ	Intel
Chipset	Z790
RAM hỗ trợ	4 x DDR5 DIMM sockets supporting up to 192 GB
Khe cắm mở rộng	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Ổ cứng hỗ trợ	CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Cổng kết nối (Back Panel)	1 x PS/2 keyboard/mouse port 1 x USB Type-C® port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (1T1R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks
LAN / Wireless	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek® Wi-Fi 6E RTL8852CE(PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Kích cỡ	ATX Form Factor; 30.5cm x 24.4cm
