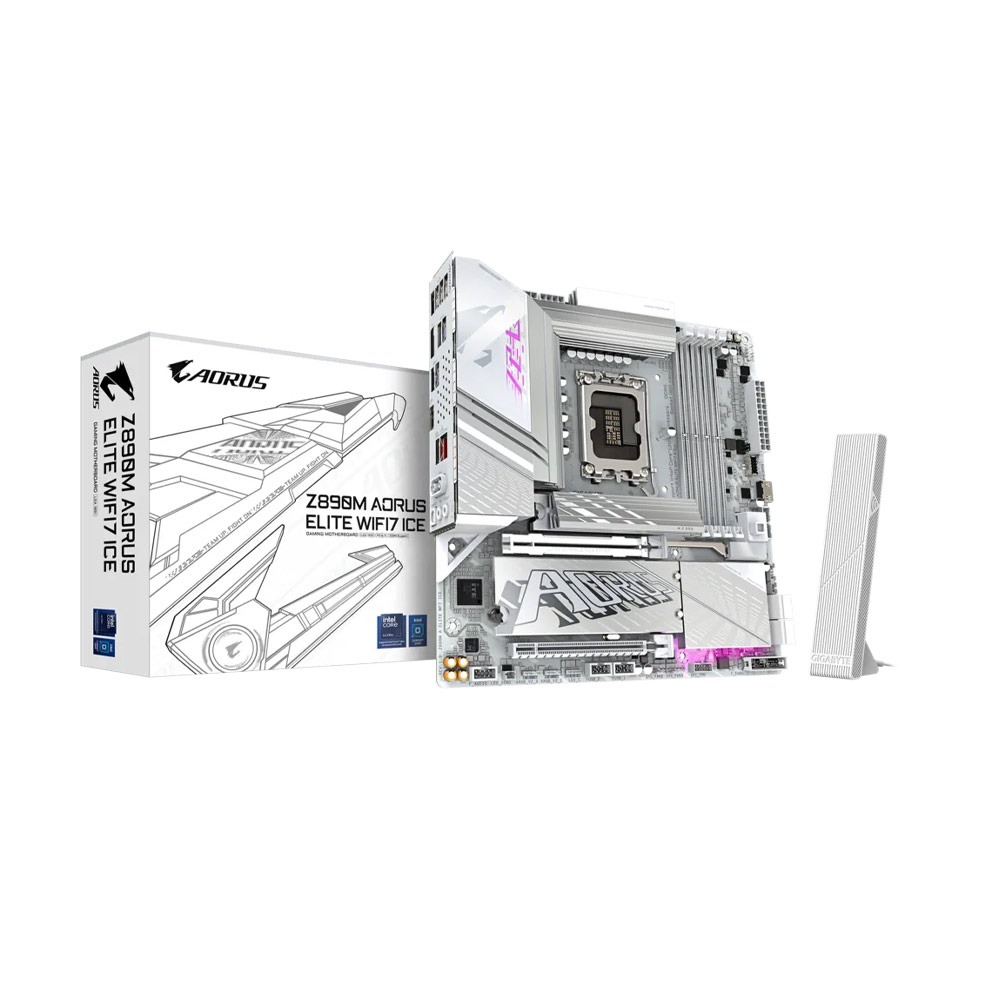

Mainboard Gigabyte Z890M AORUS ELITE WIFI7 ICE DDR5 (Bluetooth)

Mã SP:

Đánh giá: Lượt xem: 211

Mô tả sản phẩm:

- Socket: LGA1851 socket - Support for Intel Core Ultra Processor
- Kích thước: Micro-ITX
- Khe cắm RAM: 4 khe (Tối đa 256GB)
- Khe cắm mở rộng: 1 x PCI Express x16 slot (supporting PCIe 5.0 and running at x16 (PCIEX16)), 1 x PCI Express x16 slot (supporting PCIe 4.0 and running at x4 (PCIEX4))
- Khe cắm ổ cứng: 3 x M.2 slots and 4 x SATA 6Gb/s ports

Bảo hành:	36 tháng
Kho hàng:	Còn hàng

Liên hệ

Đặc điểm nổi bật

Đọc thêm

Đánh giá & Nhận xét

0 đánh giá về Mainboard Gigabyte Z890M AORUS ELITE WIFI7 ICE DDR5 (Bluetooth)

Mời bạn gửi đánh giá về sản phẩm


Đánh giá:
Tên bạn
Email *
	Gửi đánh giá

Quang Đức

Tôi đã mua hàng , Nhân viên rất nhiệt tình, phong cách phục vụ chuyên nghiệp. Một địa chỉ tin cậy để khách hàng đặt niềm tin.

Xem thêm các đánh giá khác

Hỏi đáp về Mainboard Gigabyte Z890M AORUS ELITE WIFI7 ICE DDR5 (Bluetooth)

Thông số kỹ thuật

Sản phẩm	Bo mạch chủ
Tên Hãng	GIGABYTE
CPU hỗ trợ	LGA1851
Chipset	Intel Z890 Express Chipset
RAM hỗ trợ	Support for DDR5 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. Support for DDR5 6400/5600 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Support CUDIMM memory module
Khe cắm mở rộng	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Ổ cứng hỗ trợ	CPU: - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 4 x SATA 6Gb/s connectors
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port(Note) 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Cổng kết nối (Back Panel)	1 x USB4 USB Type-C port (DisplayPort(Note)) 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x DisplayPort (Note) 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
LAN / Wireless	LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Realtek Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard
Kích cỡ	Micro ATX Form Factor; 24.4cm x 24.4cm
